航空接頭
產品規格
|
ITEM
|
SHELL
|
CONTACT
|
PIN Q'TY
|
|---|---|---|---|

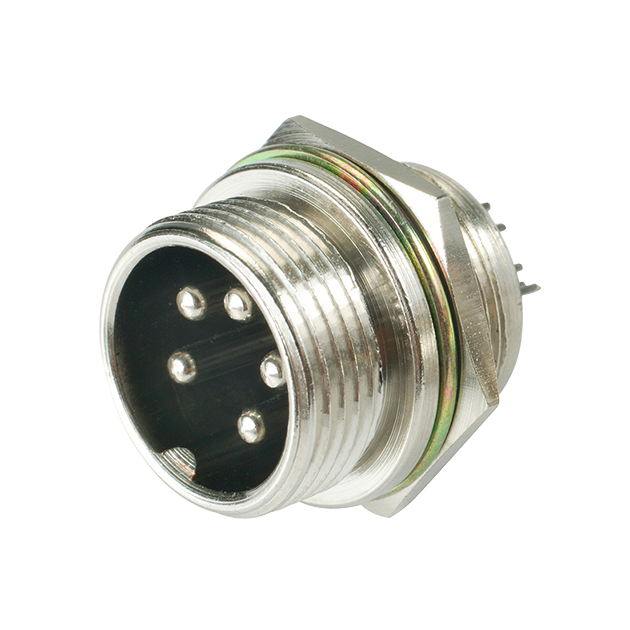

| CB-MC | MALE, NICKEL PLATED, RIGHT TYPE | NICKEL | 2P-8P |
| CB-BMC | MALE, BLACK CHROME PLATED, PATEL TYPE | NICKEL | 2P-8P |

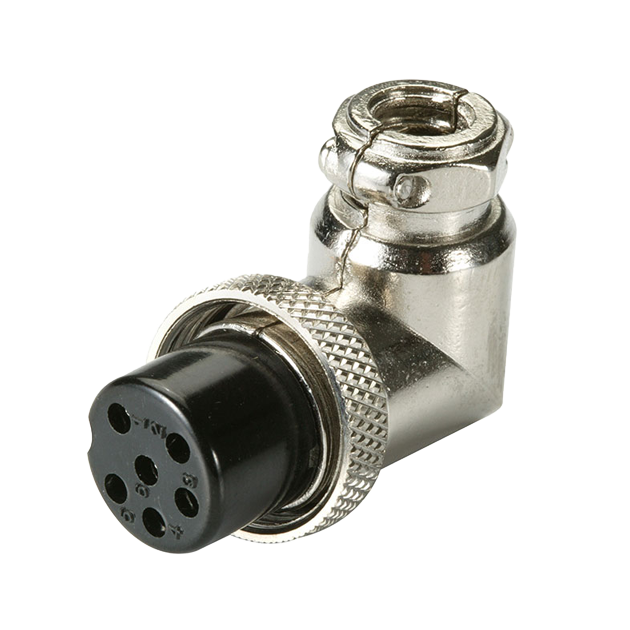

| CBL-FL | FEMALE, NICKEL PLATED, RIGHT ANGLE | NICKEL | 2P-8P |

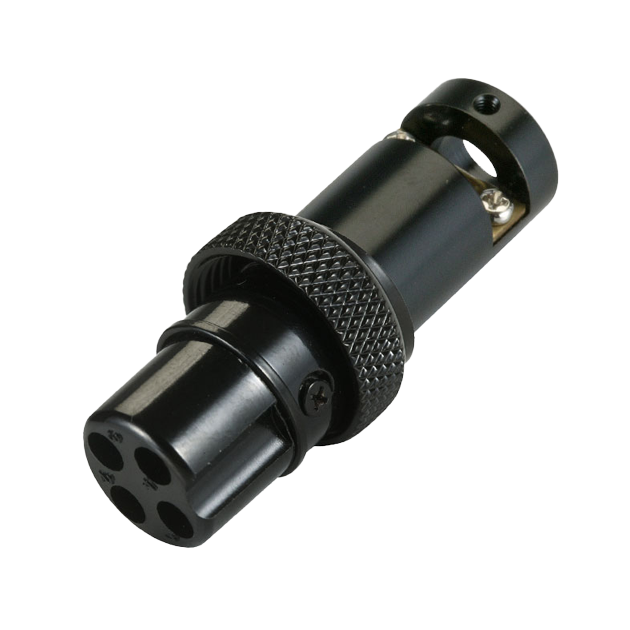

| CB-FLGS | FEMALE, BLACK CHROME PLATED | NICKEL | 2P-8P |
| CB-FL-T | FEMALE, BLACK CHROME PLATED/ MOLDING | NICKEL | 2P-8P |
| CB-FL | FEMALE, NICKEL PLATED, WIRE TYPE | NICKEL | 2P-8P |
ELECTRICAL
|
ITEM
|
CB-F/M
|
CB-MC
|
|---|---|---|
| Contact Resistance | <50m ohm | <50m ohm |
| Insulation Resistance | <10G ohm(hi-temp. & moisture enviroment >1G ohm) | <10G ohm(hi-temp. & moisture enviroment >1G ohm) |
| Dielectric Strength | 5000 DCV(2P~4P)/ 1000 DCV(5P~8P) | 5000 DCV(2P~4P)/ 1000 DCV(5P~8P) |
| Rated Current | 15A/ 10A/ 5A | 2~4P(15A)/ 5P(10A)/ 6P~8P(5A) |
| AWG | 2P-4P:14 AWG
5P:16 AWG 6P-8P:18 AWG |
2P-4P:14 AWG
5P:16 AWG 6P-8P:18 AWG |
MECHANICAL
|
ITEM
|
CB-F/M
|
CB-MC
|
|---|---|---|
| Lifetime/Insert | >1000 Cycle Min. | <1000 Cycle Min. |
| Insertion/Withdrawal Force | 2 lb(Nominal) | 2 lb(Nominal) |
CB 航空接頭
國際化規範
符合國際標準IEC61076-2
材質特性
♦使用材料皆通過歐盟RoHS無毒環保標準
♦經過REACH化學成分註冊，使用上更令人安心
♦外殼材質採用鋅合金鍍鎳，抗腐蝕且耐久性高
♦插針採用C3604鍍鎳，低阻抗且抗氧化
♦電木接頭耐水、耐熱安全性高且有優異的絕緣性能
