DXN-F系列XLR母接頭連接器(滿版)
DXN Female XLR母接頭連接器
|
ITEM
|
PIN數
|
外殼
表面處理 |
PIN材質
表面電鍍 |
尾殼材質/表面處理
線徑 |
|---|---|---|---|---|
| DXN-(*)F(*)(*)(*) | 3P-5P | 鋅合金
烤漆黑色,鎳,鉻,黑鉻 |
磷青銅,鈹銅
鎳,銀,金 |
塑膠TPR/黑色
4.7~8.5MM |
| DXN-(*)FM(*)(*)(*) | 3P-5P | 鋅合金
烤漆黑色,鎳,鉻,黑鉻 |
磷青銅,鈹銅
鎳,銀,金 |
黃銅/鎳
4.7~6.9MM |
|
ITEM
|
3P
|
4P
|
5P
|
|---|---|---|---|
| Contact Resistance | <3m ohm | <3m ohm | <3m ohm |
| Insulation Resistance | >2G ohm (hi-temp. & moisture enviroment >1G ohm) | >2G ohm (hi-temp. & moisture enviroment >1G ohm) | >2G ohm (hi-temp. & moisture enviroment >1G ohm) |
| Dielectric Strength | 1500 DCV | 1500 DCV | 1500 DCV |
| Rated Current | 16A | 10A | 10A |
| Capacitance Between Contacts | ≦ 4 Pf | ≦ 7 Pf | ≦ 7 Pf |
| Rated Current | 16A | 10A | 10A |
| AWG | 2.5mm/14AWG | 1.5mm/16AWG | 1.0mm/18AWG |
|
ITEM
|
3P/4P/5P Standard
|
3P/4P/5P Exeptional
|
|---|---|---|
| Lifetime/Insert & Withdraw | > 1000 Cycles | > 1000 Cycles |
| Insertion/Withdrawal Force | ≦ 20N | ≦ 20N |
| Cable O.D. Range | 2.5mm ~8.0mm | 10mm /max |
Internationalization standards
① IEC (International Electrotechnical Commission) is the international standard set by the IEC. All XLR series products produced by Sound Plug comply with the international standard IEC61076-2-103:2004. This ensures both global compatibility and stable audio transmission.
② RoHS requirements involve many industries, including consumer electronic devices, information technology equipment, lighting products, etc. As a product provider in the electronic and electrical field, Sound Plug uses materials that have passed the EU RoHS non-toxic and environmentally friendly standard testing.
③ EU REACH strictly controls substances of very high concern (SVHC) to ensure product quality and safety. The EU requires companies to take responsibility for the management risks of substances of very high concern. All products produced by Sound Plug comply with the relevant regulations of SVHCs, so that customers and consumers can Use safely and be environmentally responsible.

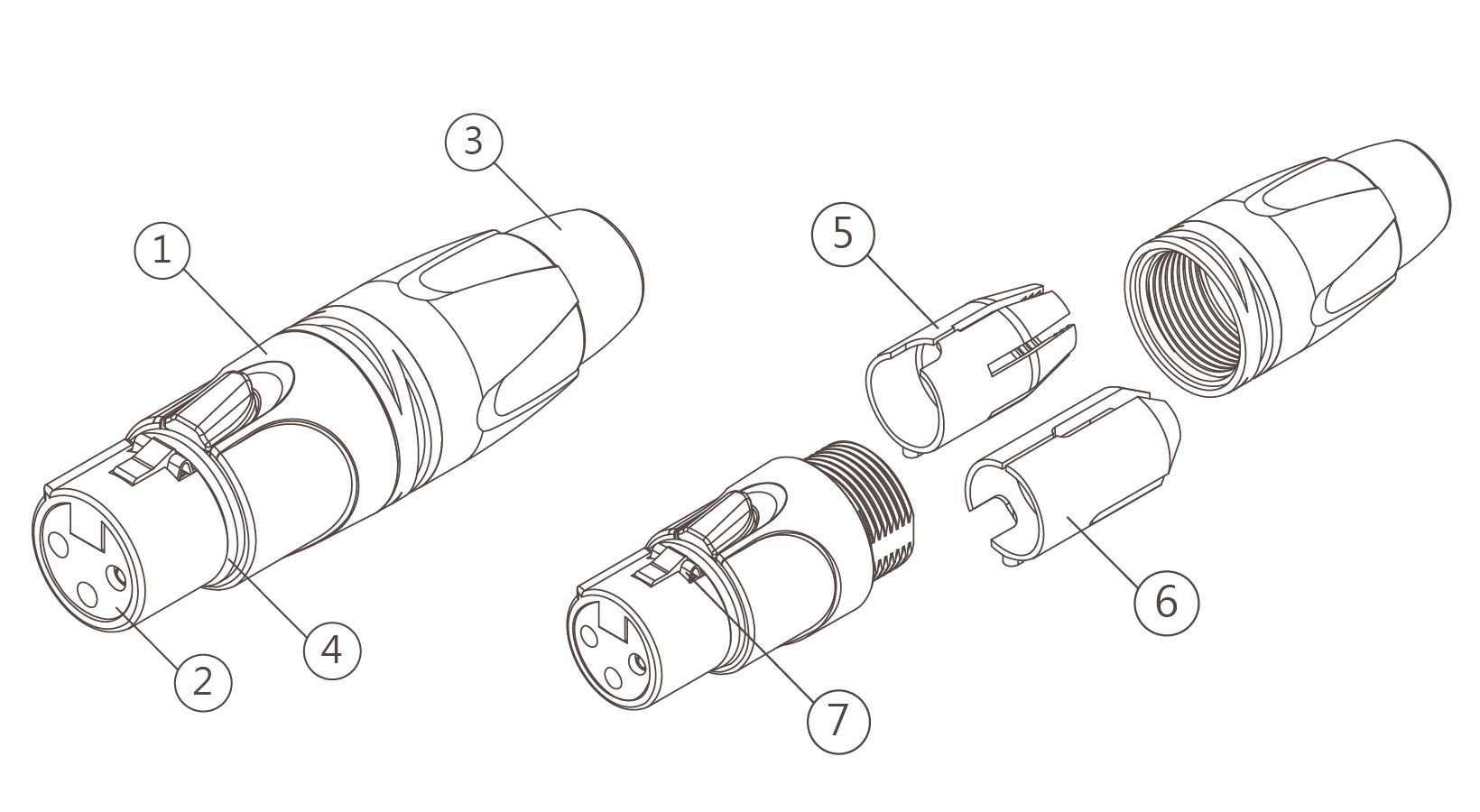

材質特性
① 外殼材質採用鋅合金，強度高且不易斷裂，外部接地性能佳，抗靜電干擾效果好 ② 母座採用PBT，耐高溫且耐化學腐蝕，具有良好的穩定性以及電氣絕緣特性，絕緣材料符合UL94-V0，防火性佳
③ 尾套採用TPR+ABS耐衝擊材料，耐化學藥劑、耐水性均良好
④ 矽膠圈有良好的阻水效果，可耐受極端溫度-40℃～220℃
⑤ PA6六葉夾線具有優良之機械強度、耐熱性、耐化性、阻燃性及良好的耐候性，配合特製尾殼，最大線徑可達Ø10mm
⑥ POM三葉夾線具有高剛性、低摩擦和優異穩定性，適用4～8mm線徑
⑦ 接地彈片為K5材質，可消除對插時的噪音，且耐高溫可達950℃
電氣特性
① 公PIN選用碲銅材質，導電佳，母PIN選用鈹銅材質，高壽命，接觸阻抗低於30mΩ
② 耐高壓絕緣材料，絕緣性高達500MΩ，耐高壓特性250V-1000V（依PIN數不同）
機械特性
① 高精密度配合插拔次數高達1000 CYCLE，產品使用壽命高
② 卡扣按鍵特殊材質設計，按壓次數可達2000次
③ CNC複合式車床加工，精度公差0.01mm以內，尺寸匹配度佳

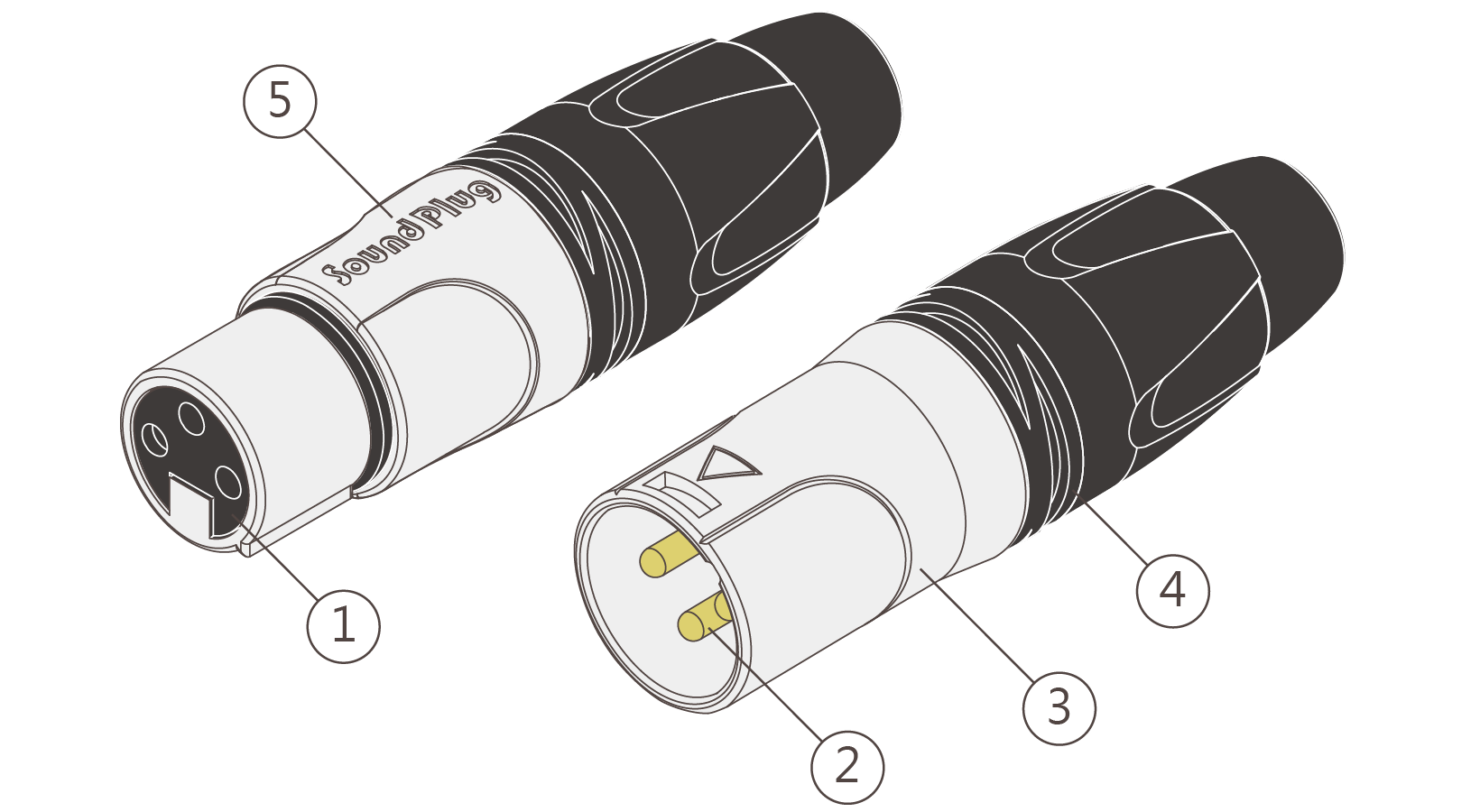

客製化設計
① 接觸導體PIN數提供3-5PIN選擇
② 提供不同材質Pin針的選擇
③ 外殼可選擇表面處理，鎳、鉻、黑鉻…其他
④ 色環及尾殼可依客戶需求更換顏色
⑤ 客戶專屬LOGO，可採網印或鐳雕
應用產業
我們所服務的行業包含視頻、音響、攝影、航空等。所有的生產設備皆持續監控生產製程，並有專人負責抽樣檢驗，確保產品安全無虞。
